What is the difference between earthing and grounding and neutral?

The major difference between the two is that earthing provides you with a grounding point, that idle the current moves into the earth while the neutral provides you with a returning point for the flow of electricity, that is the electricity wire just returns back.

What is the difference between bonding grounding and earthing?

Earthing draws the unwanted energy to the ground to protect the person who touches the metallic body of the machine during faults. Bonding ensures both the connected devices at the same level of voltage and provides a low impedance path back to the source to trip the CB in case of fault currents.

What is earth ground vs ground?

In current American terminology, ground is a reference point for measuring voltage and current in a circuit, while earth is an actual connection to a rod pounded into the ground. The more general use of ground is descended from this practice, and it's actually still important in systems using any large amount of power.

What is the use of earthing or grounding?

Earth grounding systems help carry unexpected electrical charges from other sources away safely. For example, lightning strikes can energize components in houses. The earth grounding system can sometimes safely dissipate electricity from lightning.

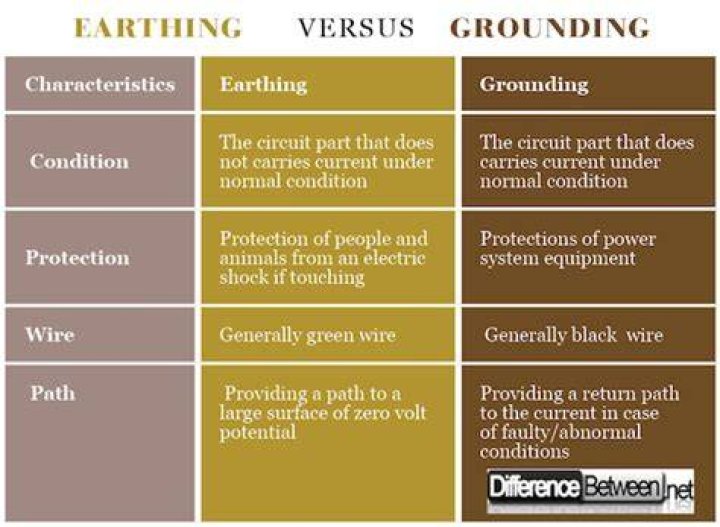

Earthing Systems vs Electrical Grounding - Difference between Earthing and Grounding

What are types of earthing?

There are three types of earthing, they are:

• Pipe earthing.
• Plate earthing.
• Strip earthing.

What is meant by earthing?

The process of transferring of charge from a charged object to the earth is called earthing. Earthing is to capture high electric sparks and moving them to ground to minimize its effect.

Can earthing be used as neutral?

No. It is never safe to use the earth wire as a neutral. Consider Figure 5: the ground wire has broken and anything else connected to it will become life once S1 is switched on.

Is there voltage between neutral and ground?

If a neutral-to-ground connection were made at the receptacle in violation of the NEC, the voltage difference between the grounding contacts of the receptacle to the neutral conductor would be 0 volts. Author's Comment: At service equipment, the voltage between the neutral-to-ground will always be 0 volts.

What are 3 types of electrical grounding?

Three different types of grounding systems that are important are listed below.

• Ungrounded Systems.
• Resistance Grounded Systems.
• Solidly Grounded Systems.

Is earthing required for AC?

Yes it is required. Earthing gives protection to the operator from electricshock.

Is neutral and ground same?

Neutral is a circuit conductor that normally completes the circuit back to the source. Neutral is usually connected to ground (earth) at the main electrical panel, street drop, or meter, and also at the final step-down transformer of the supply.

What is good earthing voltage?

A rule-of-thumb used by many in the industry is that neutral to ground voltage of 2V or less at the receptacle is okay, while a few volts or more indicates overloading, and 5V is seen as the upper limit.

How do we know earth is neutral?

Take a light bulb holder, connected with two wires i.e., for positive and negative terminals of the bulb. Now insert one of the wires in phase and the other in neutral. The bulb glows indicating the power supply. Take out the wire from neutral and insert it into the Earth's hole.

Can ground wire have electricity?

The grounding wire does not carry electricity under normal circuit operations. It's purpose is to carry electrical current only under short circuit or other conditions that would be potentially dangerous.

What happens if neutral and earth touch?

In Short if neutral wire touches a earth wire,

An earth wire carrying load current is a risk of electric shock because a person touching this earth may present an alternative path for the load current and thus the risk of electric shock.

Can I connect neutral and ground together?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.

What happens if neutral is not grounded?

Grounding neutral provides a common reference for all things plugged into the power system. That makes connections between devices safe(r). 2. Without a ground, static electricity will build up to the point where arcing will occur in the switchgear causing significant loss in transmitted power, overheating, fires etc.

Which type of earthing is best?

The pipe earthing is better than another type of earthing, because it can earth more leakage current, and the possibility of braking in the earth wire is minimum. Pipe Earthing: In this method the galvanized steel and perforated pipe of approved length and diameter in place upright in a permanently wet soil.

Which type of earthing is used in homes?

Equipment Earthing

This is the prime type of earthing for homes and other buildings. It deals with the safeguarding of noncurrent carrying apparatus and metallic conductors.

What is TT and TN earthing?

Using these, the three earthing families defined in IEC 60364 are TN, where the electrical supply is earthed and the customer loads are earthed via neutral, TT, where the electrical supply and customer loads are separately earthed, and IT, where only the customer loads are earthed.

What is the difference between TT and IT earthing system?

with using TT earthing system, touch voltage at fault location is very high. To reduce that value with TT earthing system, consumers must be use low value resistance earthing electrode. For IT earthing system, touch voltage at fault position is zero.

Why charcoal and salt is used in earthing?

Earthing Charcoal & Salt are used in Conventional Pipe & Plate Earthing. The layer of charcoal and salt helps to maintain low resistance for earth fault currents. Because of ionic behavior of salt and charcoal they will maintain moisture.

Why is neutral called neutral?

The power wire that is grounded is called the “neutral” wire because it is not dangerous with respect to exposed metal parts or plumbing. The “hot” wire gets its name because it is dangerous. The grounding of the neutral wire is not related to the operation of electrical equipment but is required for reasons of safety.
