What is clustered index with example?

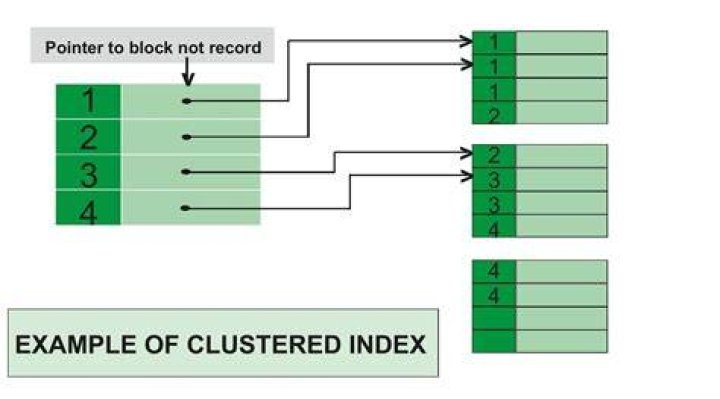

Clustered index is as same as dictionary where the data is arranged by alphabetical order. In clustered index, index contains pointer to block but not direct data. Example of Clustered Index – If you apply primary key to any column, then automatically it will become clustered index.

What is a clustered index?

Clustered indexes are indexes whose order of the rows in the data pages corresponds to the order of the rows in the index. This order is why only one clustered index can exist in any table, whereas, many non-clustered indexes can exist in the table.

What is meant by clustered index in SQL?

Clustered indexes sort and store the data rows in the table or view based on their key values. These are the columns included in the index definition. There can be only one clustered index per table, because the data rows themselves can be stored in only one order.

What are clustered and non-clustered indexes in SQL?

Clustered indexes only sort tables. Therefore, they do not consume extra storage. Non-clustered indexes are stored in a separate place from the actual table claiming more storage space. Clustered indexes are faster than non-clustered indexes since they don't involve any extra lookup step.

Clustered vs. Nonclustered Index Structures in SQL Server

Why is it called a clustered index?

A clustered index represents the physical order of the records on disk. Nonclustered indices are merely "pointers" to the physical records in the table; they are in order of their key(s) and contain the data of their keys and any included columns. Consider the index of a book vs.

What is difference between cluster and non cluster index?

A clustered index is used to define the order or to sort the table or arrange the data by alphabetical order just like a dictionary. A non-clustered index collects the data at one place and records at another place.

When should we use clustered index?

Since, non-clustered indexes are stored at a separate location than the original table, non-clustered indexes consume additional disk space. If disk space is a problem, use a clustered index.

What is SQL clustering?

SQL Server clustering is the term used to describe a collection of two or more physical servers (nodes), connected via a LAN, each of which host a SQL server instance and have the same access to shared storage.

Can clustered index have multiple columns?

Short: Although SQL Server allows us to add up to 16 columns to the clustered index key, with maximum key size of 900 bytes, the typical clustered index key is much smaller than what is allowed, with as few columns as possible.

What are types of index in SQL?

There are various types of indexes in SQL server:

• Clustered Index.
• Non-Clustered Index.
• Column Store Index.
• Filtered Index.
• Hash Index.
• Unique Index.

What is the difference between a clustering index and a secondary index?

Secondary Index − Secondary index may be generated from a field which is a candidate key and has a unique value in every record, or a non-key with duplicate values. Clustering Index − Clustering index is defined on an ordered data file. The data file is ordered on a non-key field.

Which index is faster in SQL Server?

A clustered index may be the fastest for one SELECT statement but it may not necessarily be correct choice. SQL Server indices are b-trees. A non-clustered index just contains the indexed columns, with the leaf nodes of the b-tree being pointers to the approprate data page.

Where clustered index is stored?

Clustered indexes are stored as trees. With clustered index, the actual data is stored in the leaf nodes. This can speed up getting the data when a lookup is performed on the index.

Can we create clustered index without primary key?

Can I create Clustered index without Primary key? Yes, you can create. The main criteria is that the column values should be unique and not null. Indexing improves the performance in case of huge data and has to be mandatory for quick retrieval of data.

How do I create a clustered index in SQL?

On the Table Designer menu, click Indexes/Keys. In the Indexes/Keys dialog box, click Add. Select the new index in the Selected Primary/Unique Key or Index text box. In the grid, select Create as Clustered, and choose Yes from the drop-down list to the right of the property.

What is cluster and its types?

Clustering itself can be categorized into two types viz. Hard Clustering and Soft Clustering. In hard clustering, one data point can belong to one cluster only. But in soft clustering, the output provided is a probability likelihood of a data point belonging to each of the pre-defined numbers of clusters.

What is cluster and how it works?

A cluster is a group of inter-connected computers or hosts that work together to support applications and middleware (e.g. databases). In a cluster, each computer is referred to as a “node”. Unlike grid computers, where each node performs a different task, computer clusters assign the same task to each node.

What is non clustered index in SQL?

A nonclustered index is an index structure separate from the data stored in a table that reorders one or more selected columns.

What is the advantage of clustered index?

A clustered index is useful for range queries because the data is logically sorted on the key. You can move a table to another filegroup by recreating the clustered index on a different filegroup. You do not have to drop the table as you would to move a heap. A clustering key is a part of all nonclustered indexes.

Is a primary key a clustered index?

The primary key is the default clustered index in SQL Server and MySQL. This implies a 'clustered index penalty' on all non-clustered indexes.

Is primary key always clustered index?

Nope, it can be nonclustered. However, if you don't explicitly define it as nonclustered and there is no clustered index on the table, it'll be created as clustered. Show activity on this post.

What is fragmentation in SQL?

SQL Server index fragmentation is a common source of database performance degradation. Fragmentation occurs when there is a lot of empty space on a data page (internal fragmentation) or when the logical order of pages in the index doesn't match the physical order of pages in the data file (external fragmentation).

What is unique index in SQL?

The CREATE UNIQUE INDEX command creates a unique index on a table (no duplicate values allowed) Indexes are used to retrieve data from the database very fast. The users cannot see the indexes, they are just used to speed up searches/queries.
