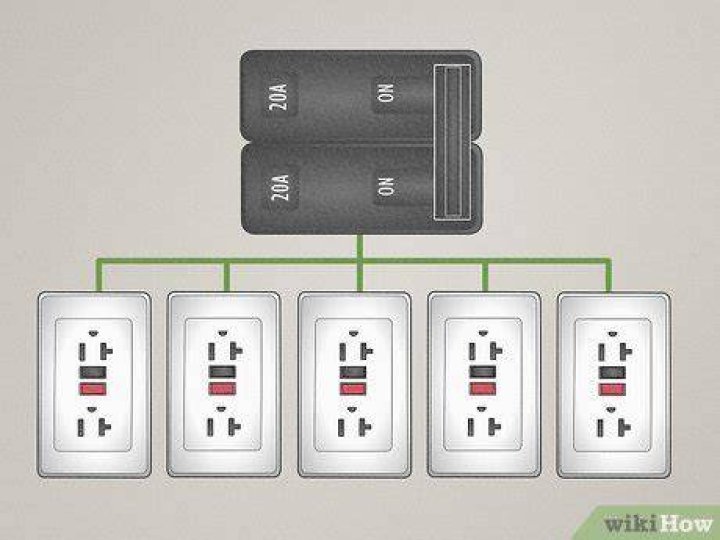

How many outlets can be on a 20a circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How many circuits can be on a 15 amp breaker?

You can install a maximum of 8 electrical outlets on a single 15-amp circuit. The National Electrical Code, or NEC, limits the continuous load capacity to 80% of the rated total load of a breaker.

How many outlets can you add to an existing circuit?

(Don't make matters worse by adding yet another outlet to the circuit.) Electrical codes restrict the number of lights or electrical outlets that can be connected to one circuit. Typically, you can have no more than eight lights or electrical outlets on a 15-amp circuit.

What happens if you have too many outlets on one breaker?

What Happens If You Have Too Many Outlets on One Circuit? Potentially nothing. Outlets themselves do not draw power. It's only when you plug devices into your outlets that they start transmitting electrical current.

How many outlets can you put on one circuit ?

How do I know if I'm overloading a circuit?

The most obvious sign of an electrical circuit overload is a breaker tripping and shutting off all the power. Other signs can be less noticeable: Dimming lights, especially if lights dim when you turn on appliances or more lights. Buzzing outlets or switches.

How much is too much on a breaker?

Electrical Code safety regulations say you can load a circuit up to 80 percent of its amperage rating. For instance, a 20-amp breaker will trip if it draws 16 amps of power. Keeping below the 80 percent figure will avoid overloads when you plug-in appliances like a vacuum cleaner.

How many 15 amp outlets can I put on a 20 amp circuit?

The National Electrical Code, in article 210.21 (B) 1, 2, and 3, describes the requirements of single and multiple receptacles on a circuit. The use of multiple 15 amp receptacles on a 20 amp circuit is permitted.

Can bathroom lights and outlets be on same circuit?

The Bathroom Needs at Least Two Dedicated Circuits

This is no more. The bathroom electrical code now stipulates that the bathroom must have dedicated circuits that aren't shared with outlets or lights in any other room. You must provide at least two of these circuits.

Can I piggyback an outlet from another outlet?

Answer: Absolutely you can. Using 12-3 wire (for a 20 amp circuit, or 14-3 wire for a 15 amp circuit) splice the new wire to both wires on the "hot" side of the outlet and to the white wire. You may need to cut 6" pieces of wire to go from each wire nut to the outlet. Splice the ground to the existing ground as well.

How many outlets can I put on a 12 gauge wire?

12-Gauge Wire: Pros

Using 12-gauge wire on 20-amp circuits also allows you to wire more receptacles on a single circuit. A 20-amp circuit can power 10 receptacles, whereas a 15-amp circuit can only power 8. If you are using standard 2-receptacle outlets, you can add an additional outlet for each 20-amp circuit.

Can you have 15-amp outlets on a 20-amp breaker?

The amperage of the outlet must never exceed the amperage of the circuit. According to National Electrical Code, only a 15-amp or 20-amp electrical receptacle can be installed to a 20-amp circuit. A 15-amp receptacle may also be installed on a 15-amp circuit.

Can 2 circuits share a breaker?

Yes, it's fine to combine circuits onto one breaker, at which point they become one circuit.

How many amps can you put on a 20-amp breaker?

The standard for most household circuits are rated either 15 amps or 20 amps. An important note to remember is that circuit breakers can only handle about 80% of their overall amperage. That means a 15-amp circuit breaker can handle around 12-amps and a 20-amp circuit breaker can handle about 16 amps.

How many outlets can be on a 50 amp breaker?

A single receptacle has a maximum power draw of 1.5-amps, so, only use 26 outlets at most for a 50-amp breaker (40-amps ÷ 1.5-amp = 26.67 outlets).

How many outlets can you put on a 30 amp breaker?

The NEC states that you can only have 30-amp receptacles on a 30-amp circuit. If it's a multi-outlet circuit, you can have a 20-amp breaker protecting the #10 conductors and use 15amp and 20amp receptacles on the circuit.

How close can an outlet be to a toilet?

Electrical outlet recommendations for electrical bidet toilet seats. Many of the modern bidets on the market today use electricity to offer luxury features. This often requires a electrical outlets within 4 feet of the toilet.

What is code for installing electrical outlets?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line.

How far does an outlet need to be from a sink?

Every bathroom must have at least one electrical outlet. It must be a GFCI, and it must be within 3 feet of the edge of the sink. Either behind or beside the sink is acceptable -- across from the sink on an opposite wall is not.

What happens if you put a 20 amp outlet on a 15 amp circuit?

First off, connecting a 20 Amp load to a 15 Amp circuit will overload the circuit but shouldn't cause a fire because the 15 Amp breaker will trip. A 20 amp GFCI doesn't pose any threat just by being there.

Can I use 12 gauge wire on a 15 amp circuit?

With 12 gauge, you need to use the screw terminals. You can use 15 amp outlets on either 15 or 20 amp circuits. 12 gauge wire is the minimum for 20 amp circuits. 14 gauge wire is the minimum for 15 amp circuits.

Can you use 14 gauge wire on a 20 amp breaker?

NEC 240.4(D)(3) states that 14 AWG must be protected at 15A. You can not use 14 AWG anywhere on a circuit that has a 20A breaker.

How many circuits can be on a 200 amp panel?

How many circuit breakers in a 200 amp panel? Most 200-amp breaker panels have 40 to 42 slots of single-pole breakers or 20 slots for double pole breakers.

How many Amps can a 200 amp panel handle?

Electricians recommend not to exceed 80% of circuit capacity. In this case, a 200 amp panel should not exceed 160 amps at any time or 32000 watts.

How many amps can a wall outlet handle?

In the United States, a standard household outlet provides 120-volts from alternating current and 15-amps.
