How do you find the diameter of a pitch circle?
John Campbell What is pitch circle diameter?
The Pitch Circle Diameter (PCD) is the diameter of the circle which passes through the centre of all the studs, wheel bolts or wheel rim holes. The easiest way calculate the PCD is as follows: 1) Measure the distance 'S' between two adjacent studs from the centre of each hole.
What is pitch diameter formula?
You can use the formula pitch diameter = major diameter - 0.6495 × thread pitch if you know the major diameter of the internal thread in question.
How do you find the pitch circle diameter of a flange?
MEASURING A STANDARD FLANGE
One of the most important measurements is the Pitch Circle Diameter (PCD) which can determine if the flange bolt holes will match each other. Measure across the centre from one side of the internal hole to the opposite side of the hole.
How do you find the pitch circle diameter of a spur gear?
Pitch Diameter (d) is the diameter of the pitch circle; its value is: d = m x z. Outside Diameter (de) is the diameter of the outside circle; its value is: de = m (z + 2); de = d + 2m.
Calculate bolt (pitch) circle diameter
What is pitch circle of a gear?
Pitch circle: The circle, the radius of which is equal to the distance from the center of the gear to the pitch point. This is where the gear's speed is measured. Pitch diameter: Diameter of the pitch circle. Pitch point: The point of tangency of the pitch circles of a pair of mating gears.
How do you calculate PCD hole distance?
Wheel PCD Measurement Calculation Formula
- 4 Stud PCD = Stud distance divided by 0.7071 to get PCD.
- 5 Stud PCD = Stud distance divided by 0.5878 to get PCD.
- 6 Stud PCD = Stud distance divided by 0.5 to get PCD.
How do you calculate the pitch diameter of a metric thread?
To find its pitch diameter:
- First, calculate the height of its fundamental triangle (H) using H = P × (√3) / 2. H = 1.5 mm × (√3) / 2 = 1.299 mm.
- Then, obtain for the pitch diameter (d₂) using d₂ = d - 2 × (3 / 8) × H, d₂ = 10 mm - 2 × (3 / 8) × 1.299 mm = 9.026 mm.
What is pitch diameter of a pulley?
pitch diameter: Diameter of the pulley at the pitch line level of the belt used with this pulley. pitch circumference: Circumference of a circle with a diameter equal to the pitch diameter. effective diameter: Reference diameter of the pulley at the tip of the grooves, with the minimum specified transitional radius.
Does pitch diameter mean diameter?
Pitch diameter, denoted by dm or d2, is the imaginary diameter for which the widths of the threads and the grooves are equal.
How do you determine the diameter of a pulley?
In the example below, the pump RPM is 1070, for full output, while the motor is 1750 RPM. If the drive pulley on the engine is 4 inches in diameter, we need to calculate 4/. 315 = 12.70. This means that the pump pulley must be 12.70 inches, in diameter, to run the pump at 1070 rpm.
What is pitch diameter of external thread?
5. PITCH DIAMETER-The basic thread pitch diameter is the diameter where the thread thickness is equal to the space between the threads. If the flats at the top and bottom of the thread are the same, the pitch diameter will coincide with the middle of the sloping side of the thread.
How is internal pitch diameter measured?
To calculate the pitch diameter, one must imagine a cylinder whose diameter exists at the point where the thread groove width and the thread crest width are both equal to one another and equal to half the nominal pitch of the thread. The diameter of this imagined cylinder is the pitch diameter.
What is the pitch diameter of a sprocket?

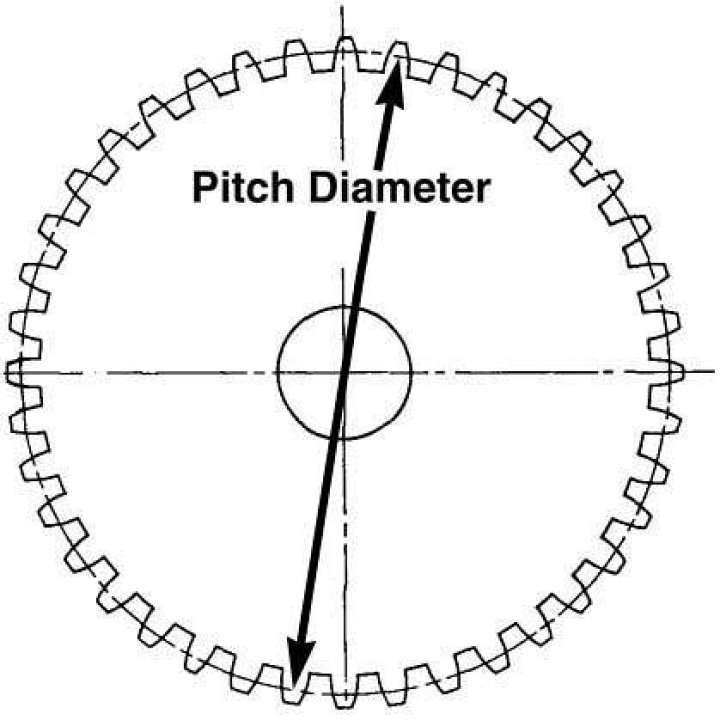

The sprocket pitch diameter is an imaginary circle through which the chain pin centers move around the sprocket. The pitch diameter is the fundamental design geometry that determines the size shape and form of the sprocket teeth dimensions.
How do you find the major diameter of an external thread?
For measuring the major diameter of external threads following methods are to be used: 1. By using the ordinary micrometer 2. By using the bench micrometer • For measuring the major diameter of internal threads is usually done by the thread comparator fitted with ball ended styli.
How do you calculate driven pulley dia and RPM?
Calculating Output Speed Using Pulley Diameters and Input Speed
- RPM Output/RPM Input = Multiplication Factor. On a belt-driven fan the two primary speeds required are the RPM of the Motor and the RPM of the fan. ...
- Formula. RPM Input/RPM Output = Diameter Out/Diameter In.
- Formula. ...
- RPM Out = 1,002.13.
Why do pulleys have different diameters?
By changing the diameter of the pulley wheels, speed can be changed. A smaller pulley turning a larger pulley results in the larger one moving more slowly but with more shaft power.
How do you calculate RPM from diameter?
The following equation is used to calculate spindle speed: rpm = sfm ÷ diameter × 3.82, where diameter is the cutting tool diameter or the part diameter on a lathe in inches, and 3.82 is a constant that comes from an algebraic simplifica-tion of the more complex formula: rpm = (sfm × 12) ÷ (diameter × π).
How do you find the RPM in a circle?
To do this, use the formula: revolutions per minute = speed in meters per minute / circumference in meters. Following the example, the number of revolutions per minute is equal to: 1,877 / 1.89 = 993 revolutions per minute.
How do you calculate RPM from a pole?
For a 60 Hz system with four poles, the calculations to determine RPM would be:
- (Hz x 60 x 2) / number of poles = no-load RPM.
- (60 x 60 x 2) / 4.
- 7,200 / 4 = 1,800 RPM.
How much pull would it take on the block and tackle rope 4 pulley combination to lift a 545 pounds engine?
Problem: How much pull (F) would it take on the block and tackle rope in Figure 3.6 to lift a 545-pound engine? With a three rope-block and tackle. 182 pounds of force will lift a 545-pound load, but the force will move a greater distance than the load. vertical and horizontal.
