How deep should a footing be for a garage?
Olivia Zamora Do I need footings for a detached garage?
A footing will almost always be required when building a garage with a second floor. Generally, you pour perimeter footings to support the weight of the framing and roof. The footing is there solely to support the structure. You then pour the garage slab separately.
How deep should a concrete base be for a garage?
So what constitutes a good garage base? Lets look at the factors that will make up a good concrete base for garage: The base itself should be 4″ thick in the main and 8″ thick around the outer edges. Underneath the concrete there should be a minimum 4″ of compacted hardcore.
How deep do my footings need to be?
Depth of Footings
Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected.
Do I need a foundation for a garage?
To build a sturdy garage, you need to pour a foundation. Concrete foundations for smaller structures like sheds are often optional, but a garage needs a foundation.

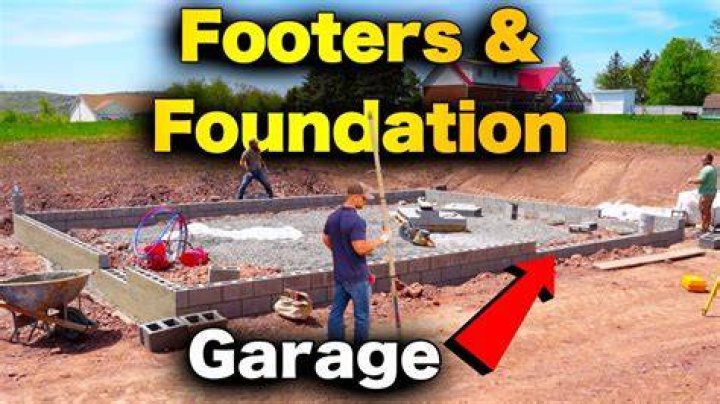

Garage: Footer Prep
Do you need a footer for a garage slab?
All three types of slabs will need a footer and a slab of at least 4″ thick. The footer's depth needs to be the frost line's depth or as per local code, but no less than 12″ deep. The width of the footer needs to be at least 12″ wide.
What size footing do I need?
To determine the size of the footing, a simple formula is used: Structural Load (lbs) / Soil Capacity (psf) = Footing Surface Area Required (sq. ft.)
Is rebar required in footings?
Including rebar in a concrete footing means that you can reduce the risk of the concrete being pushed and pulled apart – cracking – from ground force pressures. Knowing this, it is generally a good idea to use rebar in footings for any structure. However, it is not required in many cases.
How do you know if your foundation is deep enough?
You dig a small hole in the ground at the side of the wall to see how deep/ wide the concrete is , it's the only way to know for sure .
Is 4 inches of concrete enough for garage floor?
The concrete slab should be four inches thick at least; it needs to be thicker if heavy equipment will rest on it. Building codes offer requirements for the concrete mix, which vary by region.
How much does it cost to pour a 24x24 slab of concrete?
A typical 24x24 garage slab costs between $3,057 and $5,944 with prices ranging from $5.31 to $8.31 per square foot for a 4” reinforced slab of concrete, and $6.83 to $10.32 per square foot for a 6” slab of reinforced concrete.
How thick does a garage floor need to be?
Thickness of Garage Floor Slab
Light Loads – For one to two light cars or trucks, the concrete should be at least four inches thick. Medium Loads – If the garage is used for average-sized vehicles and/or medium to heavy trucks, the concrete needs to be six inches thick.
Does a garage foundation need rebar?
A garage slab or the garage concrete floor does not need rebars, provided it is 4” or less in thickness. Other forms of concrete reinforcement will however reduce cracks. Rebar is certainly required if the garage slab is 6” or thicker. This is the short & sweet answer.
How deep are concrete footings?
The depth of the holes should be dependent upon the climate where you live. The footing must be at least 12 inches (30.5 centimeters) deeper than the frost line. In the winter, the water in the soil freezes. For the footings to remain supportive, they must extend deeper than the frozen soil.
What kind of foundation do I need for a garage?
A garage foundation is typically constructed of concrete block or a poured concrete wall. First the site is cleared or scraped and footing trenches are dug below grade according to code.
What is the difference between footing and foundation?
The footing is what's actually in contact with the ground, while the foundation is the structure that transfers the load to the earth.
Do footings need to be straight?
Footings can be larger than required dimensions, but should not be smaller. Footings should be straight and level to within 1/4 in. over 20 ft., and should be no more than 1/2-in.
What kind of concrete is used for footings?
C25 standardised mix concrete or ST2 Concrete is widely versatile and used in numerous commercial and domestic projects. It is commonly used for footings and foundations, including mass concrete fill, trench fill and reinforced fill, as well as general groundworks.
Should you put gravel under footing?
You do need gravel under a concrete slab, footing, or patio. Gravel provides a solid foundation for your concrete as it can be compacted. It also improves drainage, preventing water from pooling beneath the concrete.
How wide and deep should footings be?
A concrete footing should be 100mm deep by 300mm wide if the footing is for a free standing wall. The footing should be increased to 150mm deep and 450mm wide if the wall being built is a retaining wall. For larger retaining walls an engineer may need to be approached for advice.
How many bags of concrete do I need for a footing?
In order to have enough concrete for one cubic foot, you'll require 2.2 bags of 60-lb concrete. Since bags are only sold in whole (not half, or quarter) quantities, you'll need to purchase three (3) 60-lb. bags for one cubic foot.
Do I need footings for a metal garage?
Even the best-designed building is futile without a solid foundation. Depending on the size of your metal building, gravel, dirt, wood, or concrete are all viable options for a functional foundation. Ideally, your metal building will rest on a concrete slab foundation or a few concrete strips around the outside base.
How do I prepare the ground for my garage slab?
- Dig the ground down to the proper depth. ...
- Smooth out the ground with the flat side of a rake so that you have a level surface. ...
- Tamp the ground with a hand tamper or mechanical tamper. ...
- Pour 2 inches of small, rounded gravel for additional drainage needs.
