How do you run electrical wire through framing?

1. Mark the Box Locations. Measure and mark the center of each box. ...
2. Place the Box on the Framing Member. ...
3. Drill into Corners at an Angle. ...
4. Thread the Cable Through the Holes. ...
5. Run the Cable Around Corners. ...
6. Knock Out a Hole in the Box. ...
7. Cut and Strip the Wires. ...
8. Push the Wires into the Box.

Can Romex be run through studs?

I have been told my whole career that you can only run two romex through a hole in a stud. You are allowed to run as many wires as you want through a nipple, under 18" without derating the conductors.

How many wires can you run through a stud hole?

The Answer. According to the National Electrical Code, you can have 4 12/2 nonmetallic sheathed cables through a single bored hole that is fire- or draft-stopped using thermal insulation, caulk, or sealing foam, or where proper spacing is not maintained for more that 24 in.

How big of a hole can you drill in a stud?

2. Drilling. Any stud may be bored or drilled, provided that the diameter of the resulting hole is no more than 60 percent of the stud width, the edge of the hole is no more than 5/8 inch (16 mm) to the edge of the stud, and the hole is not located in the same section as a cut or notch.

How to run wires through studs when drywall is up. How to Make the Drywall repairs quick and easy!

How many wires can go through a 3/4 hole?

arichard21. my inspector told me that they must not take up more than 50% of the capacity of the hole, or 4 wires max through ANY size hole. he said 3 12-2 wires is pushing it for 3/4", but is still okay.

Can you run wires through insulation?

Yes, you can. RetroFoam insulation is both soft and pliable. Its composition makes it very easy to fish electrical wiring through the injection foam insulation.

Where is Romex not allowed?

To give you an overview of what the National Electrical Code (NEC) regulations state, Romex wire shouldn't be left exposed anywhere in the house, be it the basement, attic, or the home itself. In other words, the installation above is not compliant with the relevant codes.

Does drilling into a stud weaken it?

Only a small fraction of the stud is necessary for the bearing strength of the wall. Every plumbing and electrical run in your house goes through much larger holes drilled through studs. If your cabinet is solid, your stud is fine.

Does electrical wire have to be in conduit?

There are no wires in conduit and they must be installed, or pulled, through the conduit after installation. Rigid conduit is similar to EMT in appearance, but is much stronger. Rigid conduit is used for very large wires, exterior installations and where structural strength is required.

Where do I drill studs for wiring?

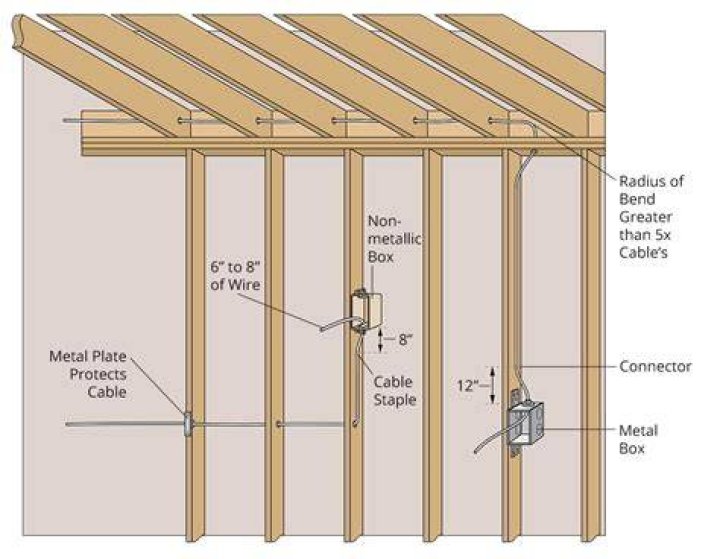

When running cable through studs, drill all holes at the same height so that the cable is run level to the floor. Drill holes 6 to 8 in. above or below all switch and receptacle boxes.

How many outlets can be on a 15 amp circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

How do you rewire a house without removing drywall?

Tips For Rewiring a House Without Removing the Drywall

One solution is securing the cable to joists or rafters using wire staples. The electrician needs to make sure that each wire is perfectly anchored to the appropriate device electrical box using the correct clamp.

How many outlets can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How far can 12 gauge wire run?

You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.

Can you zip tie electrical wires together?

Electrical zip ties can be used to keep any sort of electric wires properly bundled and out of the way. Whether you need to keep your computer wires tied, an entire server tied down or any other large items keep neat and tidy, cable zip ties are the easy and economical way to get the job done quickly and easily.

Can you splice Romex in a wall?

You can't splice it in the wall or use a j-box that would be buried (code). You will need to back pull it and replace the run to the fixture. Concealed splicing is not permitted. The only correct way to splice is replace the section and/or do the splice in accessible junction boxes.

How far apart should Romex be stapled?

The clamps, staples, or braces holding a Romex cable shouldn't be any further than 4.5 feet. However, we recommend stapling after every 2 feet, just to be sure. This is especially true when running a wire where you won't have immediate access all the time.

Can you notch a stud for electrical box?

The rule is that the studs in any exterior or load-bearing wall may be notched, but no deeper than 25% of the width of the stud, or a hole no bigger than 40% of the width of the stud may be bored in it (you could pass the conduit or cable through the stud).

How do you know if you hit a wall stud?

Make a fist and knock on the wall with your knuckles. In some places, you'll hear a hollow sound. Other areas will sound more “solid.” The “solid” sound indicates you have knocked on a stud. Studs are located about 16 to 24-inches apart.

Is it OK to run Romex in PVC conduit?

No, you can not run your Romex wiring in conduits.
