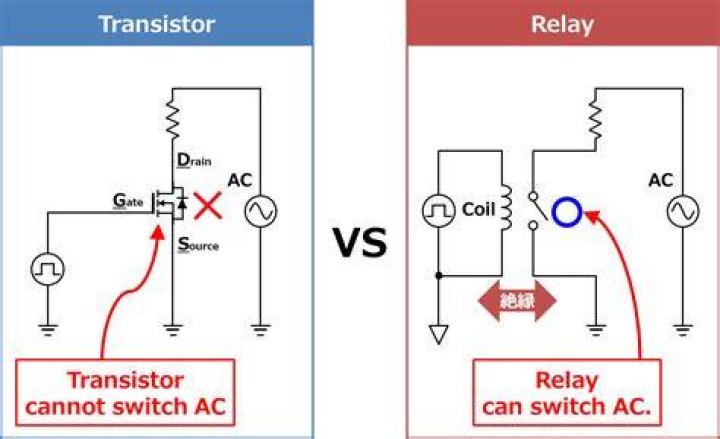

Can a transistor be used as a relay?
Mia Walsh Is a transistor faster than a relay?
The transistor is much faster at the switch speed than the relay. Transistors can operate at Megahertz speeds while relays are much slower at 200 hertz speeds. Relays are generally 50ms to switch, and probably more. Some types of transistors can switch in picoseconds.
Why does relay need transistor?
1) The relay needs 12V on the input to turn on. An Arduino GPIO only outputs 5V. A transistor in between will allow a 5V signal from the Arduino to switch a 12V signal via the transistor to the relay - thus turning it on. 2) The transistor provides protection.
Can transistor can be used as a switch?
Transistor switches can be used to switch and control lamps, relays or even motors. When using the bipolar transistor as a switch they must be either “fully-OFF” or “fully-ON”. Transistors that are fully “ON” are said to be in their Saturation region.
Can a transistor be used as an amplifier?
One of the key characteristics of a transistor is that it can be used as an amplifier. Transistors can act as amplifiers while they are functioning in the active region or when it is correctly biased.
Using an NPN Transistor as a Relay
How fast can a transistor switch?
Feng and Hafez developed a transistor less than half a millionth of a metre long, with a maximum operating speed of 604 GHz, meaning it can carry out 604 billion operations every second.
Can you use a solenoid as a relay?
The terms solenoid and relay can often be used interchangeably; however, in the Automotive market, the term solenoid generally refers to a "metal can" type, whereas a relay typically refers to the standard "cube" style relay. The contactor is the relay to use when a circuit must support a heavy current load.
Can I use MOSFET as relay?
A MOSFET relay offers superior performance to an electromechanical relay in many applications. It is a solid-state device that replaces a coil-activated mechanical switch with an optically isolated input stage driving a MOSFET.
Should I use a MOSFET or a relay?
If you're working with a high voltage load, and don't need to switch it quickly, use a relay. For almost everything else, use a MOSFET or a bipolar transistor, whichever you find easiest to use.
When would you use a transistor?
Transistors are commonly used in digital circuits as electronic switches which can be either in an "on" or "off" state, both for high-power applications such as switched-mode power supplies and for low-power applications such as logic gates.
Is a transistor like a door?
A transistor is like a door for electricity, and there can be thousands or millions or more of those in a single chip.
What is difference between transistor and relay output?
Transistor Output is a solid state configuration which can work at a fast rate. Relays are more electromechanical so they are slow. If you need to drive more current with the transistor output, you can always use a solid state relay.
What is 5V relay?
A 5v relay is an automatic switch that is commonly used in an automatic control circuit and to control a high-current using a low-current signal. The input voltage of the relay signal ranges from 0 to 5V.
How do you convert a transistor 5V to 12V?
An open-collector output and a pull-up resistor should convert 5V signal to 12V. You can use an NPN transistor (and base resistor) to change your output to an open-collector output. Not sure what you meant by "amplify", but if you meant linear amplification, a cheapo LM386 will do. For digital, get a npn.
What is the fastest transistor?
IBM claims 210-GHz SiGe transistor is world's fastest, four years ahead of competition. EAST FISHKILL, N.Y. –IBM Corp. today announced development of a new silicon-germanium (SiGe) transistor, which is capable of reaching speeds of 210 GHz while drawing only a milliamp of electrical current.
Which transistor is best for switching?
Best Transistors: BJTs
- #1 NPN – 2N3904. You can find most often NPN Transistors in low-side switch circuits. ...
- #2 PNP – 2N3906. For high-side switch circuits, you need a PNP style BJT. ...
- #3 Power – TIP120. ...
- #4 N-Channel (Logic Level) – FQP30N06L.
How can we make transistor as switch?
Cut Off State (Open Switch)
- The input is grounded i.e. at zero potential.
- The VBE is less that cut – in voltage 0.7 V.
- Both emitter – base junction and collector – base junction are reverse biased.
- The transistor is fully – off acting as open switch.
- The collector current IC = 0 A and output voltage Vout = VCC.
Do transistors amplify voltage or current?
a transistor can amplify the current and it can amplify the voltage and it can do both at the same time. a transistor can also amplify the voltage is seen on the base. this is done in transmitter common mode where the transmitter is connected to the 0v rail and the collector has a load resistor.
Can a transistor amplify DC?
Yes, transistors amplify DC. However, DC can only be amplified by BJT and not a FET. The input DC is amplified to the base, and this amplified current is extracted by at the collector.
